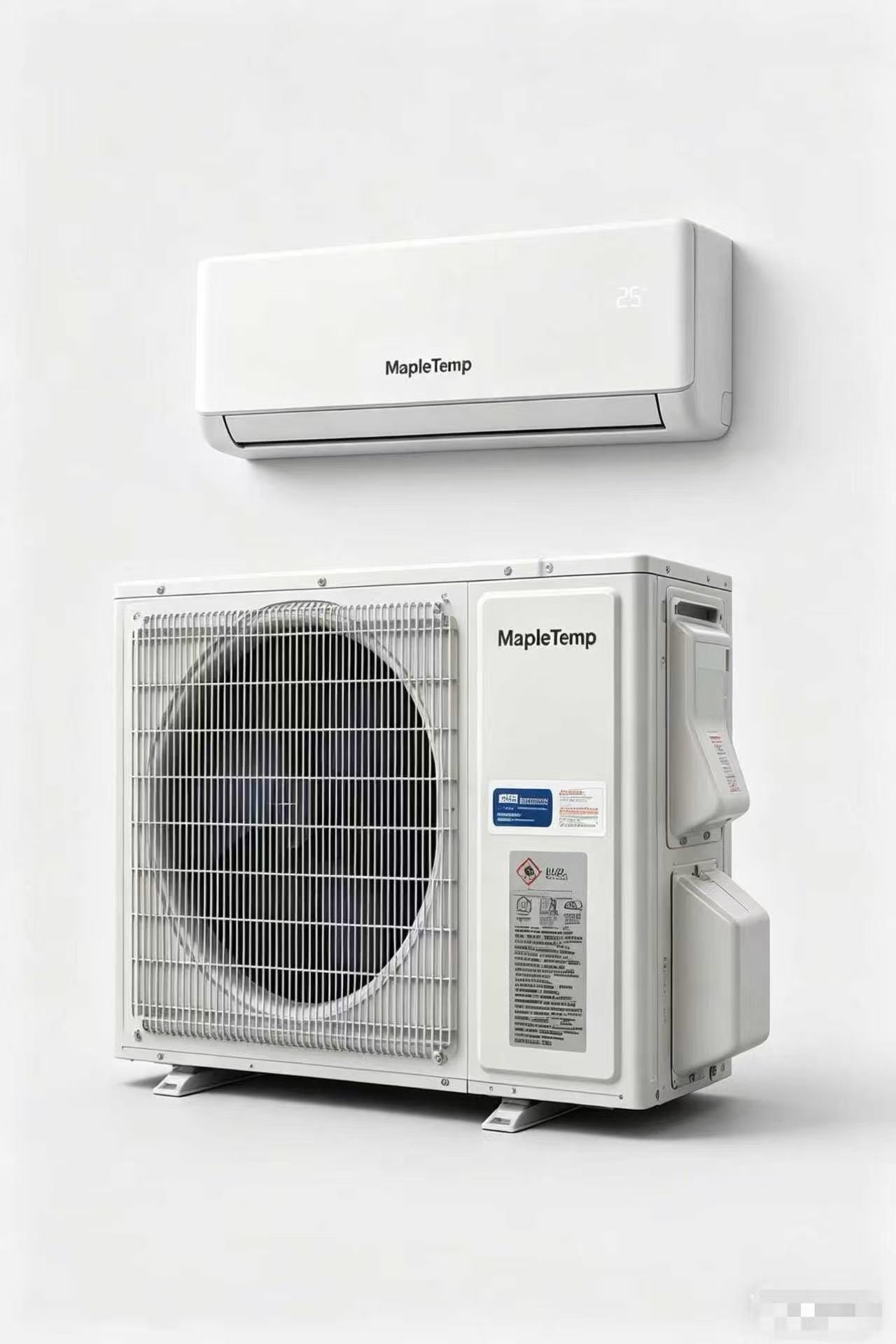

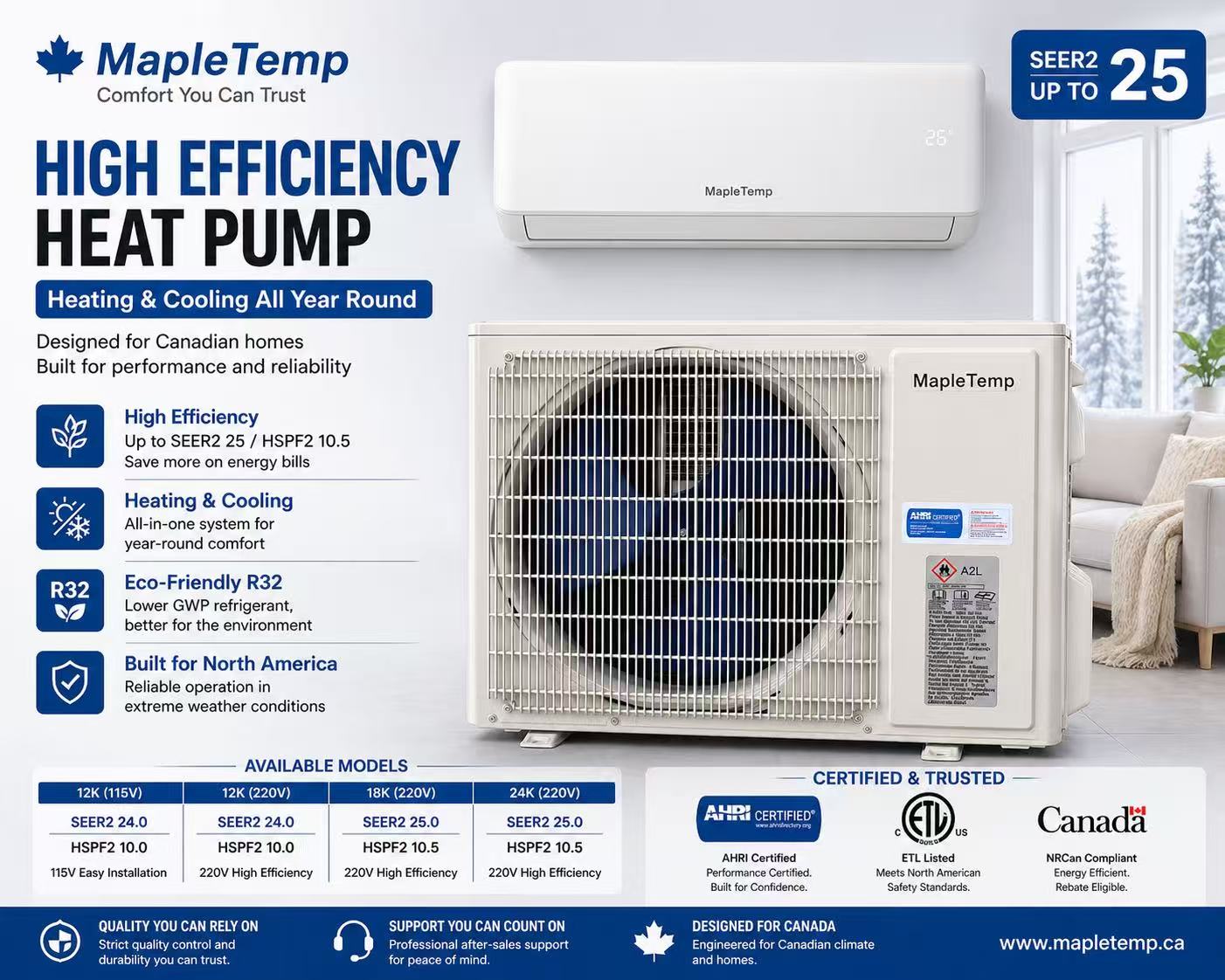

BNIB-MapleTemp Split Room Air Conditioner & Heat Pump System for Fast Cooling & Heating, MTH24-12K220V, $1499

��Model: MTH24-12K220V, 12000 BTU 220V, for 400-700Sqft, -- $1499 + Taxes

��Pickup at Richmond

��Pay additional shipping fee to deliver to your door

��️Installation is available (Ask for Quote)

��Assist BC Air Conditioner Rebates for qualified homes

Product Features

* High Energy Efficiency: Up to SEER2 24 and HSPF2 10 for lower energy consumption

* 208–230V Power Supply: Designed for high-performance residential and light commercial applications

* Strong Cold Climate Heating: Stable heating performance down to -25°C, ideal for Canadian winters

* Dual-Row Copper Coil Design: Larger heat exchange area for improved heating and cooling efficiency

* Inner-Grooved Copper Tubing: Enhanced heat transfer performance and better energy savings

* DC Inverter Compressor Technology: Quieter operation, stable temperatures, and optimized energy efficiency

* R32 Refrigerant: High-efficiency and environmentally friendly next-generation refrigerant

* AHRI / NRCan / ETL Certified: Certified for safety, efficiency, and Canadian compliance

* Quiet Operation: Ideal for homes, offices, condos, shops, and retrofit projects

* Heating & Cooling in One System: Reliable year-round comfort with both cooling and heating functions

* Engineered for Canadian Climate Conditions: Built for dependable low-temperature performance and long-term durability

*Component Warranty Period:

· Compressor: 10 Years

· Main Control Board (PCB) & Fan Motor: 3 Years

· General Parts: 1 Year

· Indoor / Outdoor Coil: Not Covered

Technical Specifications

* Cooling Capacity: 12,000 BTU/h (3,412–13,990 BTU/h)

* Cooling Capacity Input: 3517W (1000–4100W)

* Heating Capacity: 12,300 BTU/h (3,070–14,670 BTU/h)

* Heating Capacity Input: 3605W (900–4300W)

* Dehumidifying Capacity: 1.0L/h (2.11 Pints/h)

* Rated Cooling Power Consumption: 900W (240–1400W)

* Rated Heating Power Consumption: 850W (240–1400W)

* Rated Cooling Current: 4.4A (1.7–8.1A)

* Rated Heating Current: 4.3A (0.9–5.8A)

* Electric Base Pan Heater: 68W

* Maximum Input Power: 1600W

* Maximum Input Current: 10.5A

* Power Supply: 208–230V / 60Hz / 1Ph

Efficiency & Refrigerant

* SEER2: 24

* EER2: 12

* HSPF2: 10

* Refrigerant Type: R32

* Refrigerant Charge: 600g / 21.16 oz

* Maximum Discharge Pressure: 4.3 MPa

* Maximum Suction Pressure: 2.5 MPa

Airflow & Noise

* Air Flow Volume: 690 m³/h (≈ 406 CFM)

* Indoor Noise Level (Cooling): 42 / 37 / 33 / 30 / 22 dB(A)

* Indoor Noise Level (Heating): 40 / 37 / 33 / 30 / 29 dB(A)

* Outdoor Noise Level: 53 dB(A)

Dimensions & Weight

* Indoor Unit Net Dimensions (W×D×H): 827 × 299 × 200 mm

* Outdoor Unit Net Dimensions (W×D×H): 711 × 538 × 280 mm

* Indoor Unit Net Weight: 8 kg (17.64 lbs)

* Outdoor Unit Net Weight: 24 kg (52.9 lbs)

Piping & Compressor

* Liquid Pipe Size: 6.35 mm (1/4”)

* Gas Pipe Size: 9.52 mm (3/8”)

* Compressor Type: DC Inverter Rotary Compressor

* Compressor Brand: GMCC

* Copper Coil Design: High-efficiency dual-row inner-grooved copper tube heat exchanger

Performance & Certifications

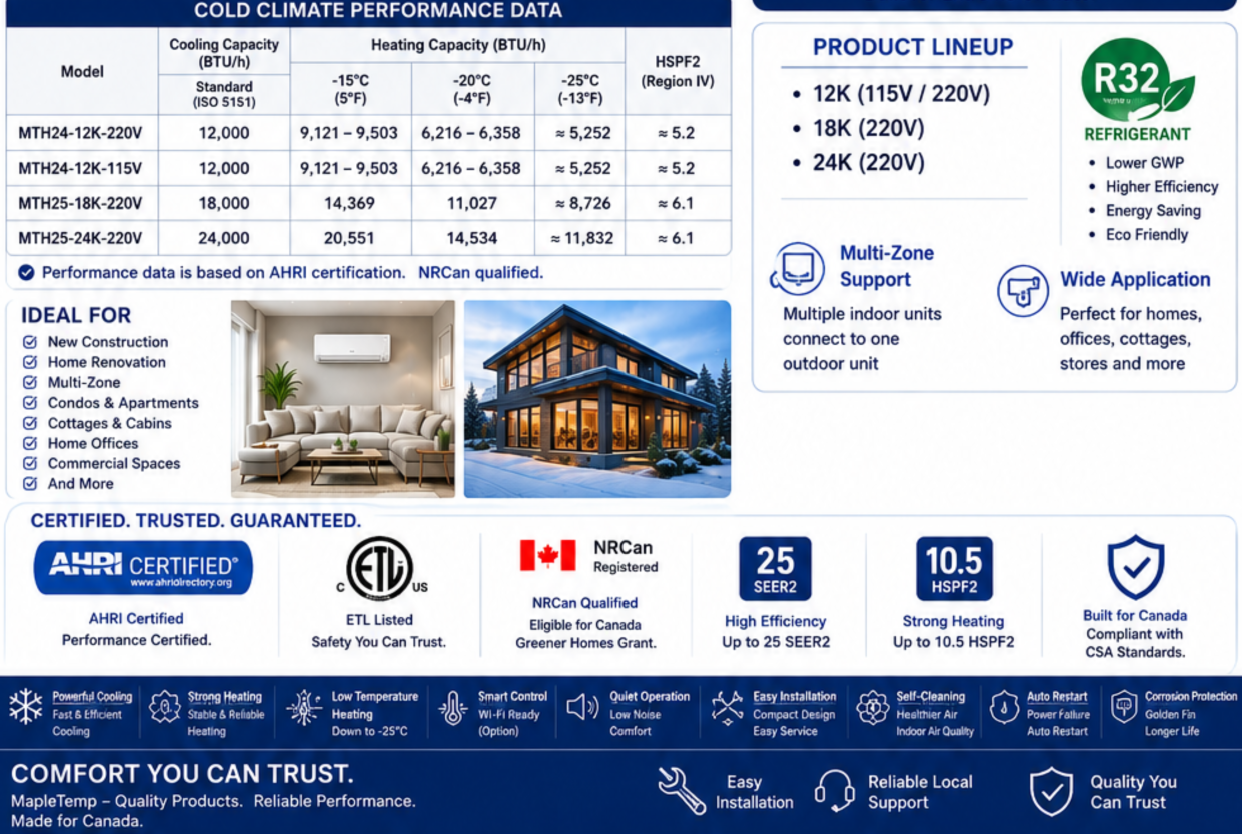

* Low Ambient Heating Performance: Stable heating operation down to -25°C

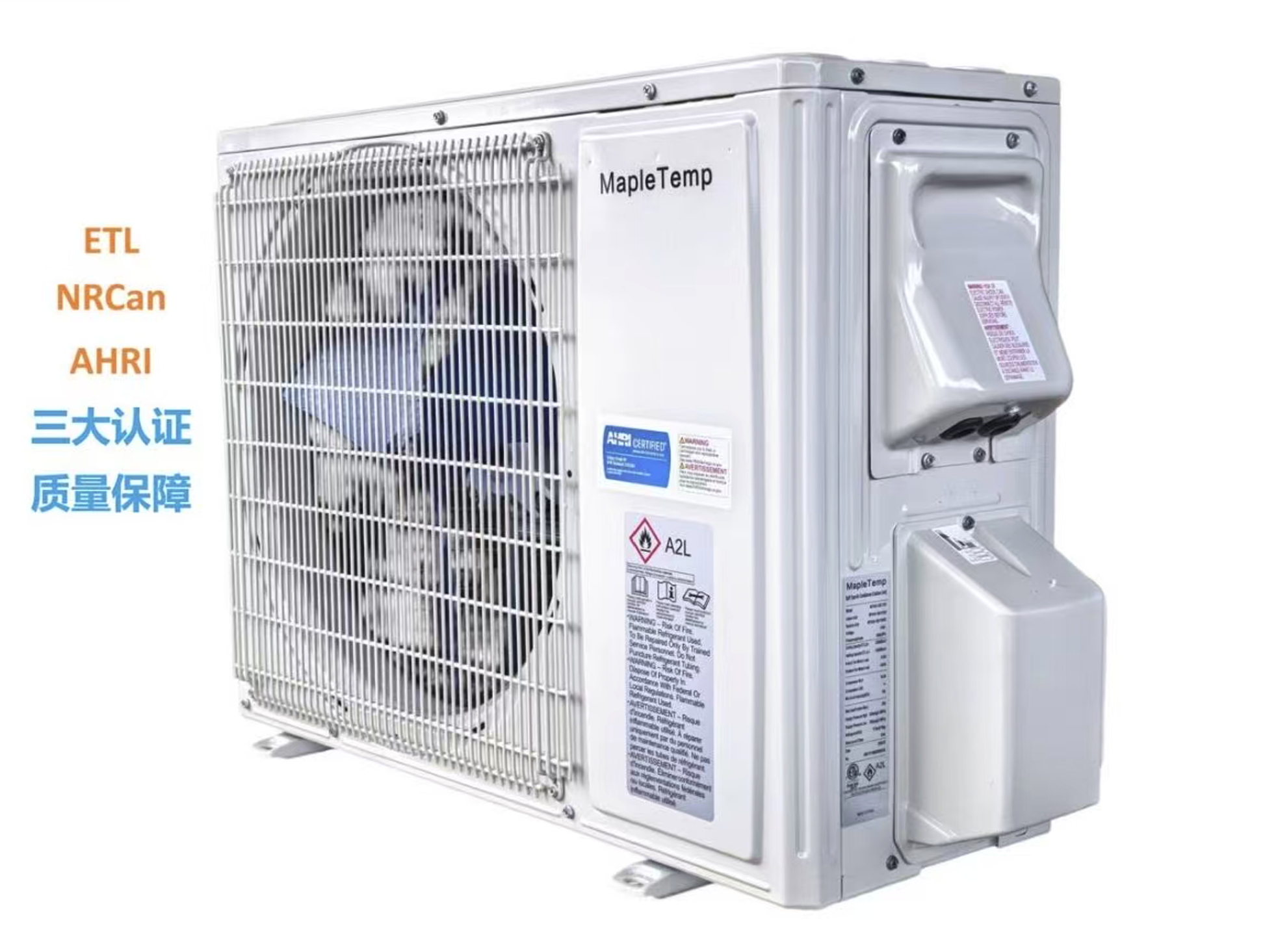

* Certifications: AHRI Certified / NRCan Listed / ETL Certified
